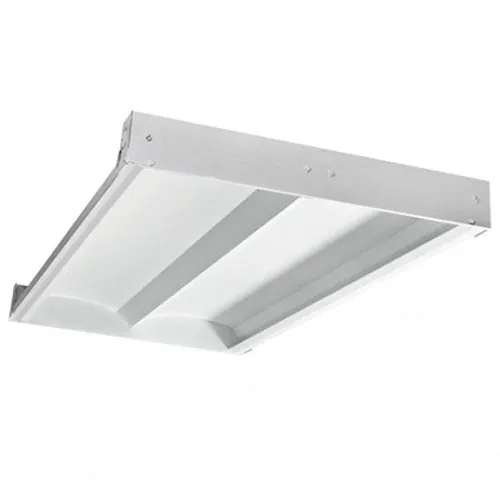

Advantage Environmental Lighting ASDI LED 2x2, 2x4 Architectural Recessed Side Direct Indirect
Long life, high brightness LEDs virtually eliminate maintenance. RoHS compliant, recyclable “green” design contains no mercury or other hazardous materials. Cooler running electronic components allow for improved lumen performance. Indirect unit with balanced illumination from sides of fixture and superior, low angle brightness control. Available with Lutron wireless controls for maximum energy savings.
CONSTRUCTION
Formed code-guage steel housing, painted after fabrication. Integral NECcompliant earthquake clips are standard. All metal parts are painted after fabrication following treatment with phosphate rust inhibitor. Finish coating of housing reflecting surfaces is with high-reflectance (minimum 92%) matte white polyester powder.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Projected life of at least 60,000 hours. Contact factory for TM-21 detail. Use of closely spaced medium-power, high brightness chips minimizes pixelation and provides uniform luminance. (For maximum diffusion LED's are coved with lens).
ELECTRICAL SYSTEM
Universal voltage (120-277 Vac) Input 50/60 Hz. Power factor > 0.95, THD < 20%. High-performance isolated driver features over-voltage, under-voltage, short-circuit and over temperature protection. Class A sound rating. 0-10 volt dimming (1% - 100%) standard.
LISTINGS
Listed to UL 1598 and UL 8750. Suitable For Damp Locations. IC Rated.
WARRANTY
5-Year Limited Warranty.
ENERGY AND PERFORMANCE DATA
- Input Voltage: 120/277VAC
- System Input Power: 32, 40, and 60 Watts*
- Delivered Lumen Output per ft: 3,942- 7,884 Lumens
- Standard Dimming Control: 0-10V
- CCT: 3000, 3500, 4000, 5000 Kelvin
- CRI: 82 (minimum)
- Life Time Rating: 50,000 hrs @ L70
- Input Frequency: 50/60 Hz
- Power Factor: >0.9
- Operating Temp: 30° to 50° C
