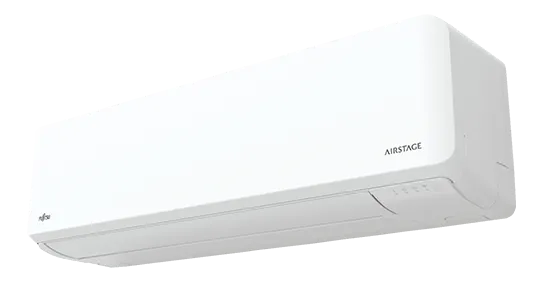

Fujitsu 12,000 BTU 29.3 SEER Wall Mounted Single Zone System is the perfect combination of efficiency and performance. This model has an Energy Saving Program function that scans the room to ensure a perfect balance of comfort and energy consumption. This system comes with an out of the box 7 year compressor / 5 years part warranty, 10 year warranty if its installed by a licensed HVAC tech and registered within 60 days, or a 12 year warranty if it's installed by a Fujitsu Elite contractor.

General Information

• Unit Type: Wall Mounted
• Product Line: Highest Efficiency
• Operating Mode: Cooling & Heating
• Low Ambient Heat: No
• Number of Zones: 1
• Unit Size: 12,000 BTU
• Line Set Size: 1/4" x 3/8"
• Required Install Kit:

Package Includes

• Indoor Unit: ASUG12LZAS or ASUG12LZBS
• Remote Controller Included
• Outdoor Unit AOUG12LZAS1
• Wifi Included: ASUG12LZAS
• Wifi Not Included: ASUG12LZBS  (LZAS1B)

Features

• Heats down to -5F
• Energy Saving Program (ESP) function monitors occupancy and adjusts system settings to achieve optimum energy savings.
• Built-In Wifi (LZAS) so you can remotely operate your system with your smartphone.
• SEER rating up to 29.3
• Indoor Units are super quiet with dB of 19.

Indoor Specs

• Moisture Removal: 2.7 Pt./h
• Air Circulation Modes: Hi, Medium, Low, Quiet
• Air Mode CFMs: 542, 406, 312, 206
• Indoor Sound Levels (dBs,Cooling/Heating): 43/43, 37/36, 31/31, 23/23
• Net Weight: 29 lbs
• Dimensions (HxWxD): 11", 39 9/16", 9 7/16"
• Remote Controller Included

Outdoor Specs

• Voltage: 208-230V
• Circuit Breaker: 15 Amps
• Net Weight: 84 lbs
• Dimensions (HxWxD): 24 7/8", 31 7/16", 11 7/16"
• Outdoor Sound Levels (dBs,Cooling/Heating): 47/47
• Minimum Line-set Length: 16'
• Maximum Line-Set Length: 66'
• Max Vertical Diff: 49'
• Outdoor Line-Set Ports: 1/4" x 3/8"

Performance

• Cooling Capacity 12,000 BTU
• Heating Capacity 16,000 BTU
• Cooling Min-Max: 3,100-13,600 BTU
• Heating Min-Max: 3,100-22,100 BTU
• SEER: 29.4
• HSPF: 14.0
• EER: 15.2
• Heating Minimum & Maximum Temp: -5 F - 75 F
• Cooling Minimum & Maximum Temp: 14 F - 115 F
• Max Heating % of Nominal Capacity at -5 F: 125%
• Max Heating % of Nominal Capacity at -15 F: 0%
• Room Cooling/Heating Sizing: up to 500 sq ft

Certifications

• Energy Star Yes
• ETL Listed Yes
• AHRI Certified Yes
