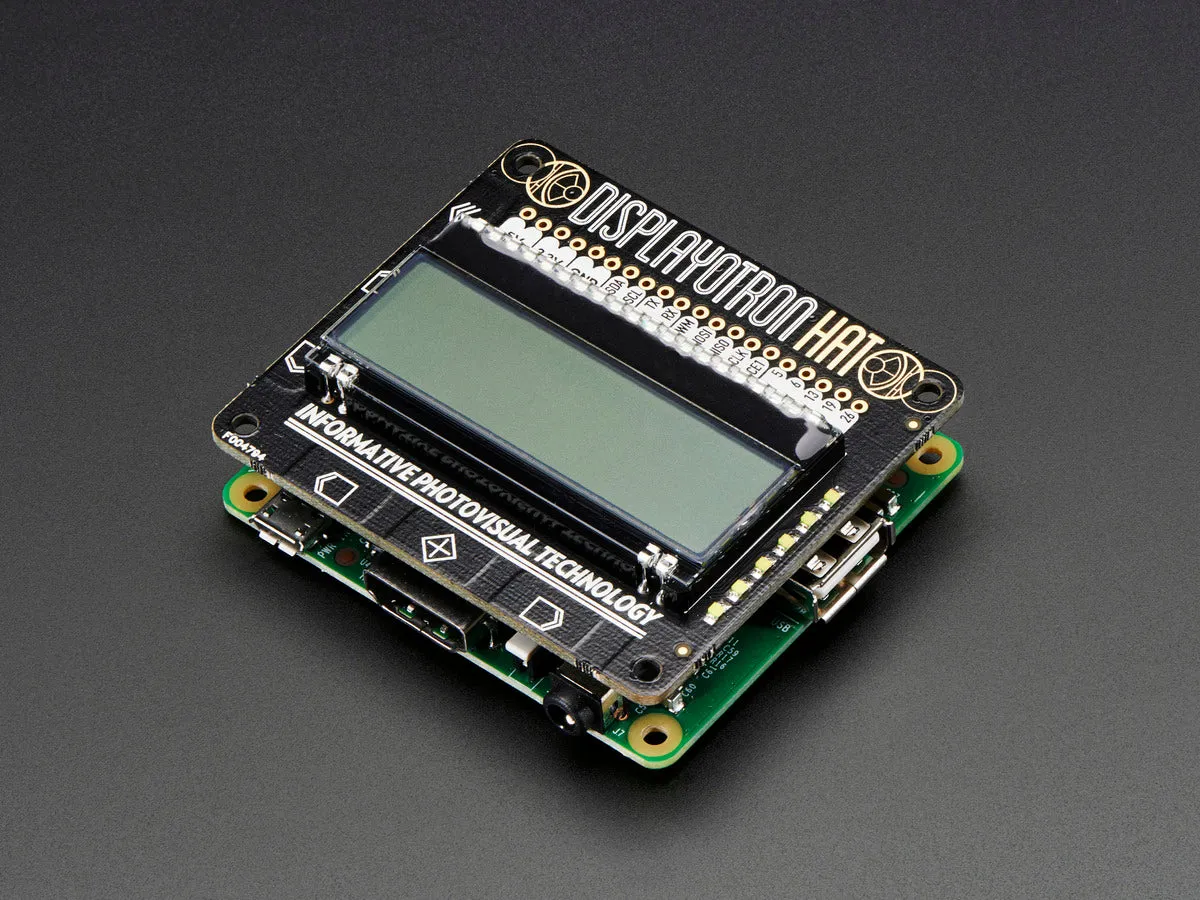

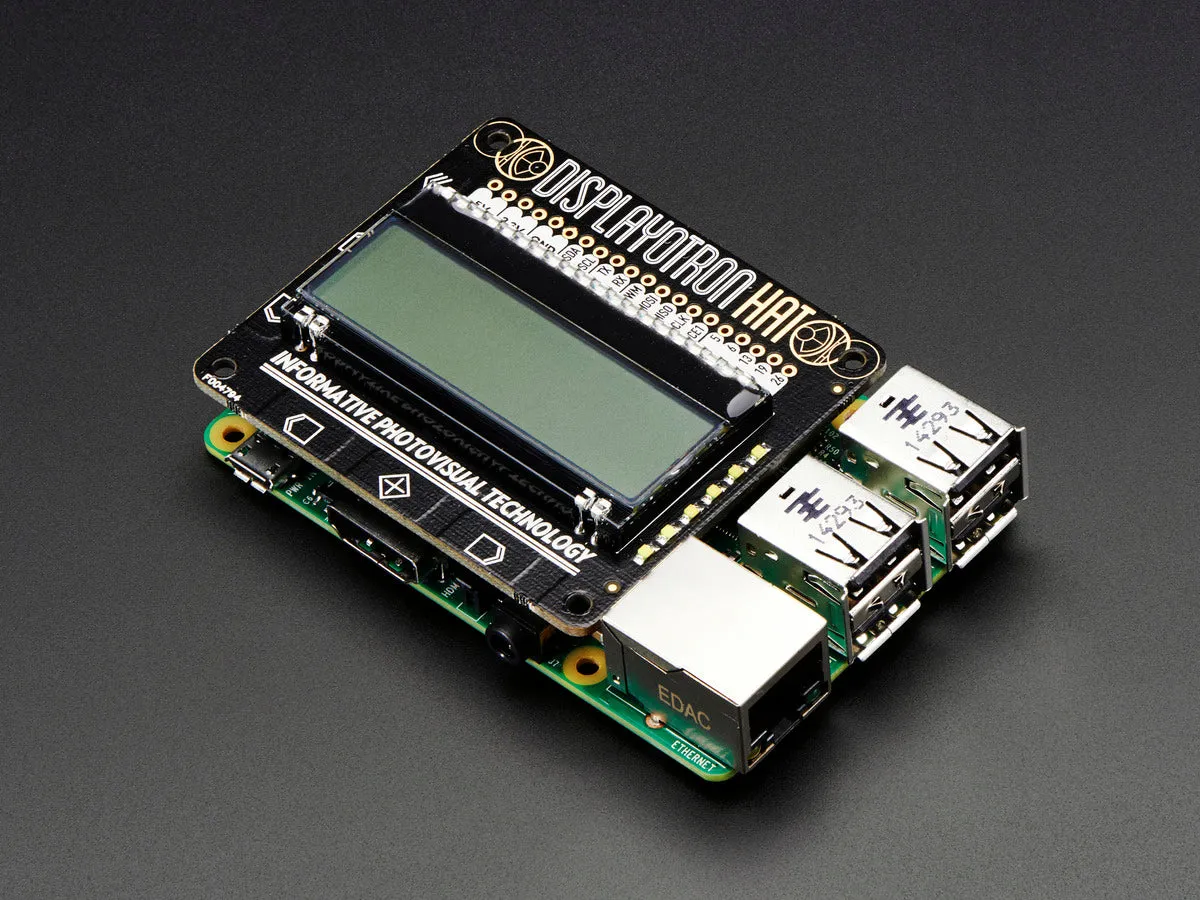

The Pimoroni Display-O-Tron HAT is an upgraded HAT version of our !

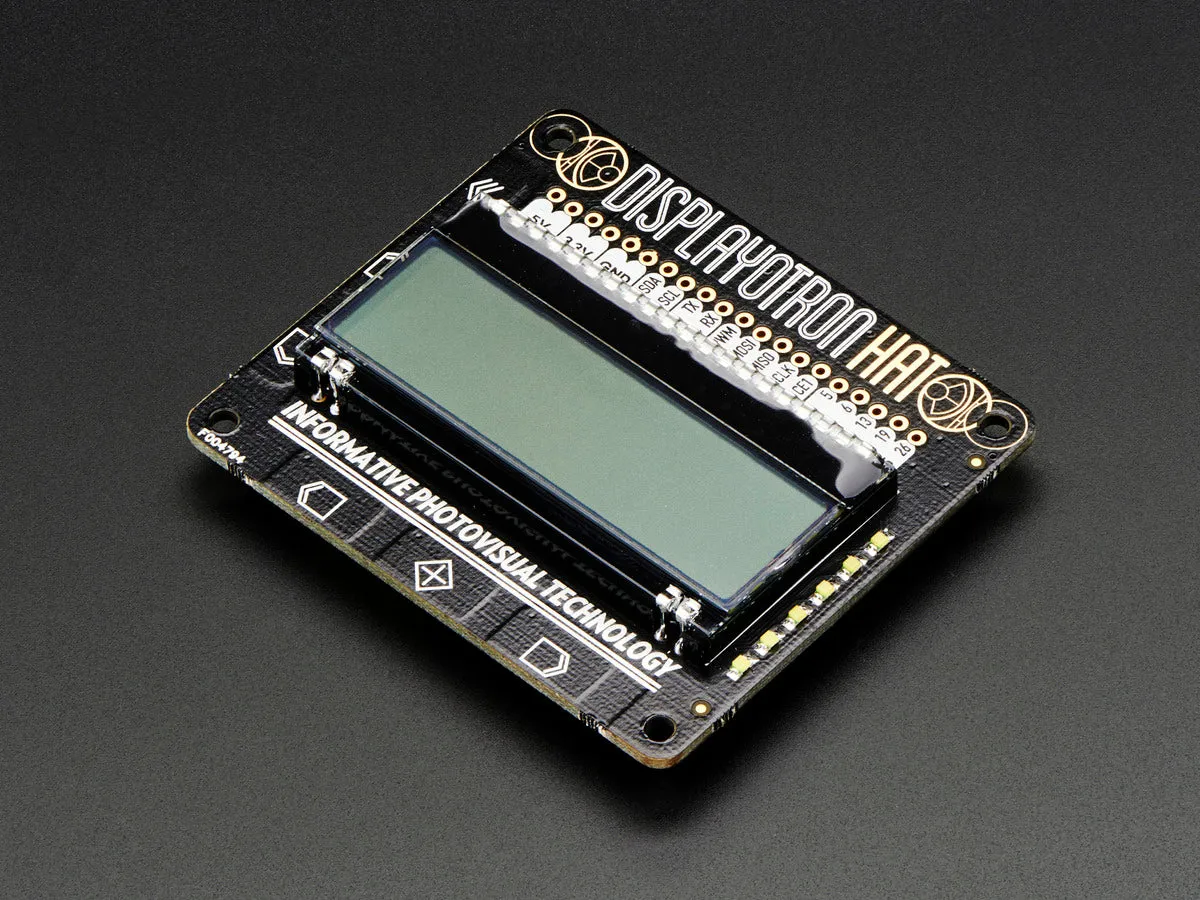

The Display-O-Tron is a lovely 16x3 character LCD display with capacitive touch pads, GPIO breakout pins, and a six-zone RGB backlight (twice as bright as the older )!
The capacitive touch pad is ideal for navigating on-screen menus or inputting data and there are some pretty common GPIO pins added for those of you who want to merge with other projects and sensors. The six-zone RGB backlight plus new and improved LED bar graph add a dazzling splash of rainbow color! Monitoring memory usage and CPU load was never so much fun!
To top this all off, this new HAT comes fully assembled with Pimoroni Python support to get you up and running!
Features:
- Fully assembled (apart from optional GPIO header)
- Super slim 16x3 character LCD display
- Six capacitive touch input buttons
- Handy six element LED bargraph
- Six-zone RGB backlight with diffuser

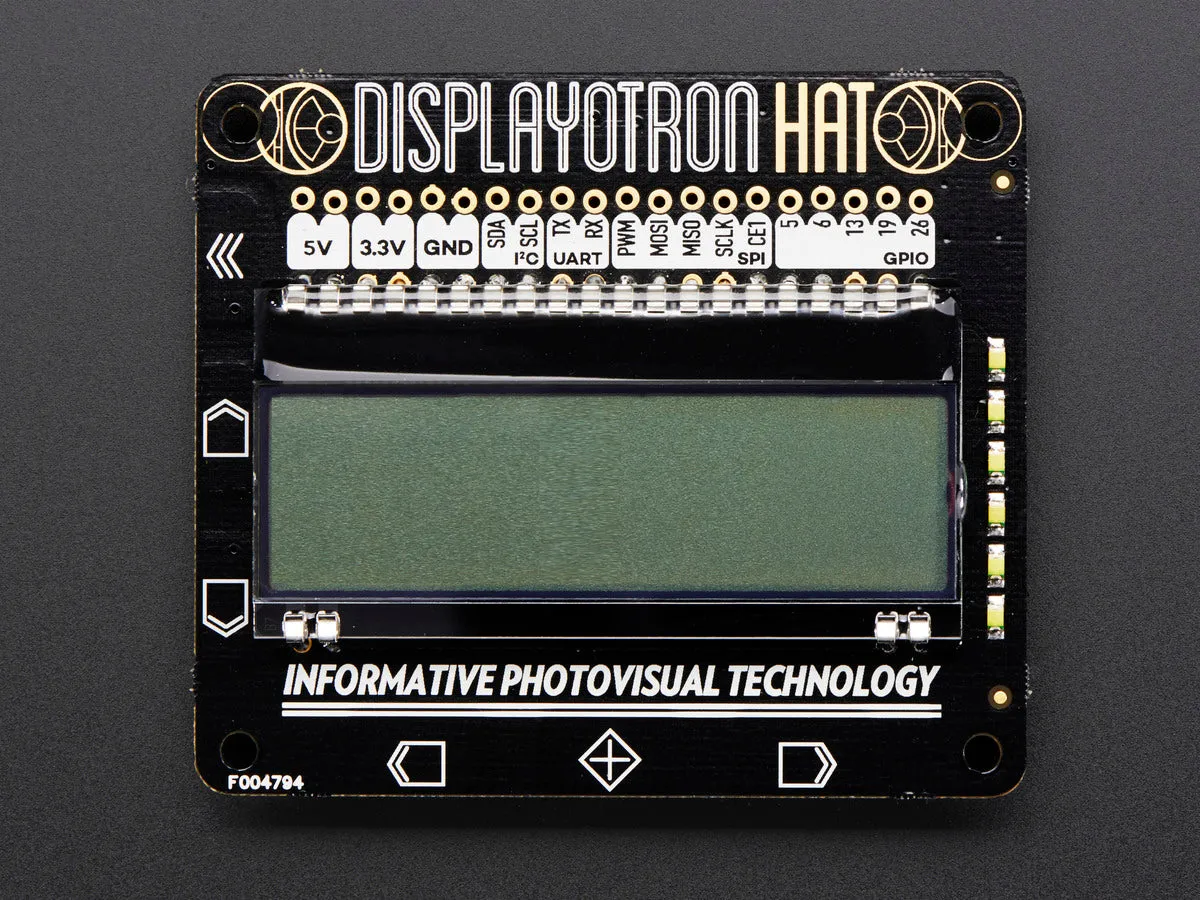

- GPIO breakout for 5V, 3V3, GND, SDA/SCL, TX/RX, PWM, MOSI/MISO/SCLK/CE1, and GPIO #5, #6, #13, #19, #26
- Full ASCII set plus eight custom characters
Technical Details
For product support, replacement parts and warranty for Pimoroni products visit the Pimoroni or .
Product Dimensions: 65.0mm x 56.5mm x 12.6mm / 2.6" x 2.2" x 0.5"
Product Weight: 26.3g / 0.9oz
